DNA 630XHT

DNA 630XHT

Outboard Motor

150-225HP

970Kg

DNA 630XHT

From $102,623

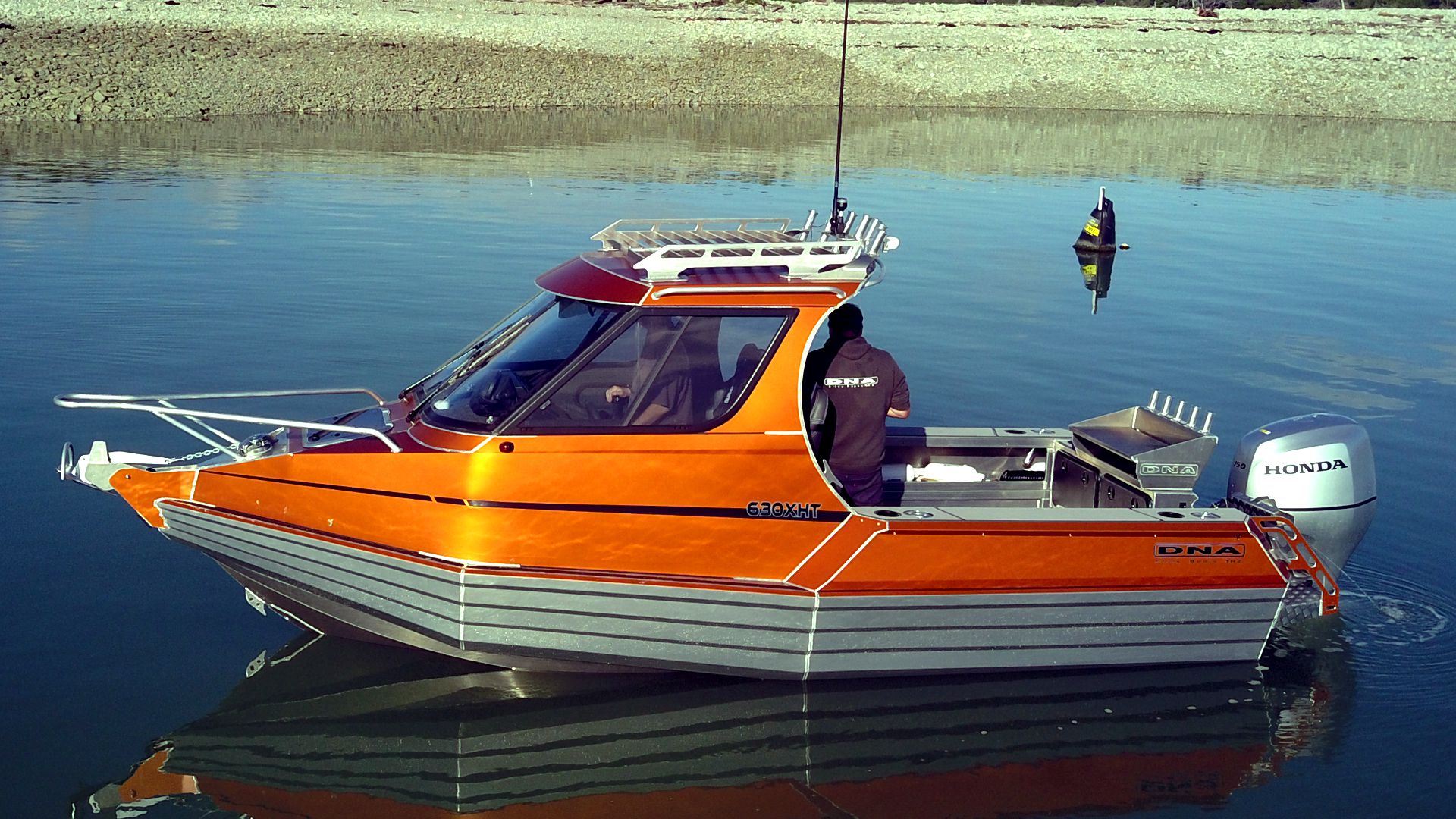

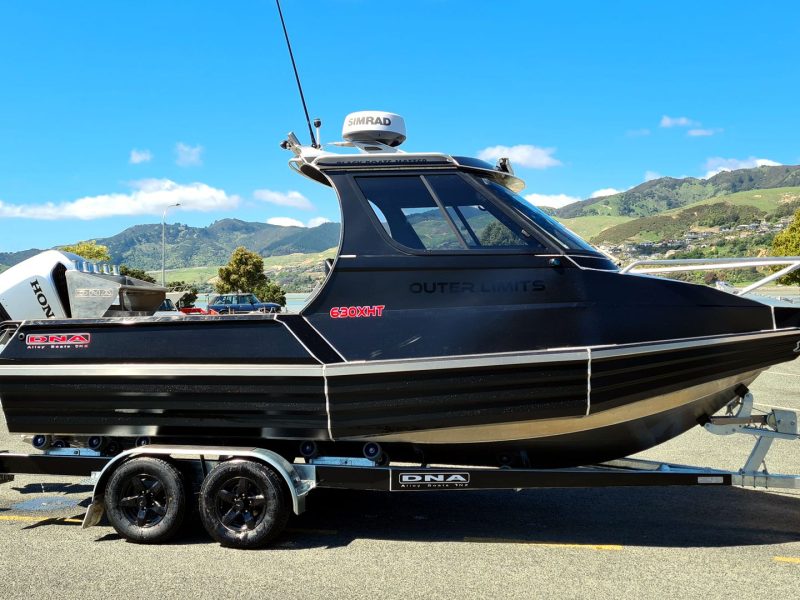

DNA’s 630 XHT hardtop is a serious fishing and diving platform. The DNA 630 hardtop is more than large enough to fish four adults comfortably whilst providing superior protection from the elements. Featuring a Curved Glass Windscreen provides an optically correct and clear view. The 630 XHT Cantilever seat bases providing storage under for twin 115 litre Icey-Tek Style Cooler bins which can be utilised for additional seating when underway. Twin enclosed Transom lockers with sealed hatches, provide secure electrical and battery storage. Underfloor 165 litre fuel tank with guage is standard. DNAs signature sleek tapering pontoons and X-Series hull provide an unrivalled soft ride. The 630 XHT high sides add additional storage to keep the deck clutter free. When optioned the forward cabin area can be set up with a Vee-Berth forward and infill squabs giving this XHT overnight capability. Offering a long list of options theses DNA XHT Hardtops can easily be set up for some serious fishing and adventure.

DNA 630XHT Specs

Length6.3M
Recommended HP150HP
Maximum HP200HP
Leg length25IN
External Beam2.27M
Internal Beam1.67M
Tube thickness3MM
Hull thickness5MM
Dry hull weight970Kg
Tow weight 1850Kg
Height on trailer 2.9M
Length on trailer 7.3M
Deadrise (At Transom)20

DNA 630XHT Features

“DNA” Graphics
Full Cabin Upholstery
Curved Front Glass Windscreen
Fuel Level Guage
Drain Bung
Anchor Self Launch
High Sides with Storage
5mm hull
Transducer Brackets
Internal Shelves for Storage
Transom Lockers with Hatch
Bilge Well and Pump
X series Hull
Tinted Sliding Side Windows
Battery Master Switch and Wiring
Roof Rod Arch with 7 Rod holders
Bow Handrails
Open Seat Bases to suit 115ltr Icey-Tek bins
DNA Slide and Swivel Bolstered Seats
Sealed Treadplate Floor
Anchor Bin
Aluminium Gunnel Rod Holders
Outboard pod
Transom platforms
Non Slip Walk Around Bow Access
Hydraulic Steering
Nav lights & anchor light
Port and Starboard Storage Pockets
  • “DNA” Graphics
  • Full Cabin Upholstery
  • Curved Front Glass Windscreen
  • Fuel Level Guage
  • Drain Bung
  • Anchor Self Launch
  • High Sides with Storage
  • 5mm hull
  • Transducer Brackets
  • Internal Shelves for Storage
  • Transom Lockers with Hatch
  • Bilge Well and Pump
  • X series Hull
  • Tinted Sliding Side Windows
  • Battery Master Switch and Wiring
  • Roof Rod Arch with 7 Rod holders
  • Bow Handrails
  • Open Seat Bases to suit 115ltr Icey-Tek bins
  • DNA Slide and Swivel Bolstered Seats
  • Sealed Treadplate Floor
  • Anchor Bin
  • Aluminium Gunnel Rod Holders
  • Outboard pod
  • Transom platforms
  • Non Slip Walk Around Bow Access
  • Hydraulic Steering
  • Nav lights & anchor light
  • Port and Starboard Storage Pockets

Note: Specifications and equipment may change at any time without notice. Photographs shown may include non-standard extras. Please consult your DNA Boats Dealer for specific model information.

DNA 630XHT Gallery

DNA 630XHT Additional Options

Tube matting on cockpit floor
Minnkota bracket
Baitboard including 5 X rod holders
U-Dek gunwale and transom top only
U-Dek All- floor, gunwales and transom platforms
Live bait tank and transom walk through
Vee Berth & 3x Squabs
Vee Berth with squabs and infills (Sleepable)
Maxwell anchor winch and anchor
Dual batteries VSR
Vinyl wrap top sides
Vinyl wrap top sides and pontoons
Wash down pump
Soft ride pedistals
Window wipers (each)
Vee berth toilet
LED lighting
Keel wear strip
Front access hatch
  • Tube matting on cockpit floor
  • Minnkota bracket
  • Baitboard including 5 X rod holders
  • U-Dek gunwale and transom top only
  • U-Dek All- floor, gunwales and transom platforms
  • Live bait tank and transom walk through
  • Vee Berth & 3x Squabs
  • Vee Berth with squabs and infills (Sleepable)
  • Maxwell anchor winch and anchor
  • Dual batteries VSR
  • Vinyl wrap top sides
  • Vinyl wrap top sides and pontoons
  • Wash down pump
  • Soft ride pedistals
  • Window wipers (each)
  • Vee berth toilet
  • LED lighting
  • Keel wear strip
  • Front access hatch
